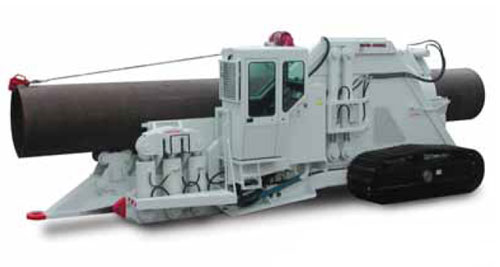

BENDING MACHINES SPB 48-60 MILLENNIUM SERIES
For bending pipe from 48” through 60”
SPECIFICATIONS
 |
HYDRAULIC SYSTEM |
| Type |
Variable flow, load sensing pump |
| Maximum oil flow |
137 U.S. gal/min / 520 lt/min |
| Pressure |
4,640 p.s.i. / 320 bar |
 |
CONTROLS |
| Type |
5 valves, proportional directional |
| Control |
Pilot operated |
 |
ELECTRIC SYSTEM |
| Voltage |
12 V |
| Batteries in series, maintenance free |
1 |
| Total rating |
100 Amp/hr |
| Alternator |
30 Amperes |
| Starter |
4 kW |
 |
WINCH |
| Type |
Hydraulic drive |
| Motor |
Orbital type |
| Line-pull |
100 Amp/hr |
| Ëèíèÿ íàòÿæåíèÿ |
27,560 lb / 12,500 daN |
| Cable diameter |
3/4” / 19 mm |
| Working pressure |
2,030 p.s.i. / 140 bar |
| Speed at first layer |
16 ft/min / 4.85 mt/min |
 |
UNDERCARRIAGE |
| Track chain type |
Caterpillar D7F |
| Track/Carrier rollers |
5 |
| Gauge |
98.5 in / 2,500 mm |
| Length of track on ground |
72.9 in / 1,850 mm |
| Triple grouser shoe width |
26”-36”/700-900 mm |
 |
CAPACITIES |
| Fuel tank |
320 liters / 84.5 U.S. gal |
| Hydraulic system |
460 liters / 120 U.S. gal |

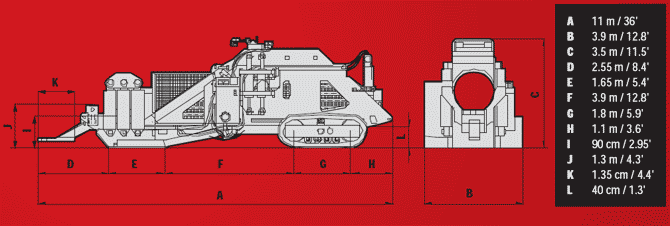

| SHIPPING WEIGHT AND DIMENSIONS |
| Shipping Length |
433” (11,000 mm) |
| Shipping Width |
153.5” (3,900 mm) |
| Shipping Height |
137.8” (3,500 mm) |
| Shipping Net Weight (Complete) |
189,000 lb / 85,000 Kg |
| Operating Weight |
189,000 lb / 85,000 Kg |
| Track Weight (Loose Pair) |
18,900 lb / 8,500 kg |
| Hydraulic System Max. Operating Pressure |
4,640 p.s.i. / 320 bar |
| Extra hydraulic control valves |
2 |
|
 |
|
